RUNMA Takeout Robot

Runma is a high-tech industrial linear robot arm manufacturer located in China, who offers IML robot, linear robots for injection molding machine, CNC robots, die-casting robotic arms, 6 axis robot and customized automation devices based on our years of endeavor in R&D, manufacturing and service of industrial automation and robotics.

Product Category:

Takeout Robot

Product ID:

BKSKU-ZDRU-402

Viewed by:

39 people

Description
Specification

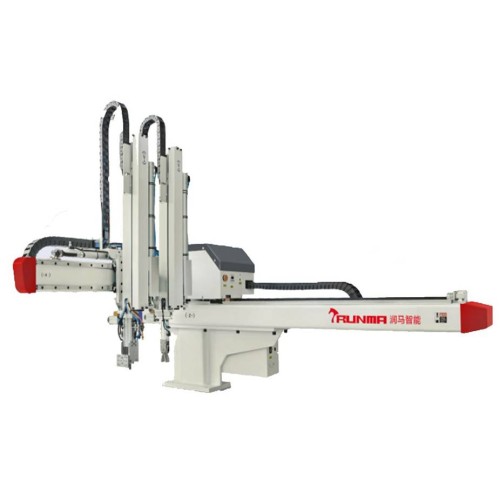

Runma three/five-axis pick and place gantry robot with telescopic arm traverse robot

Specs :

Medium-full servo traverse robot, these series are mainly applied to 150-320T horizontal injection molding machines to take out the finished product.
Telescopic arms are optional.
Vertical, crosswise and traverse strokes are driven by an AC servo motor.
Low noise THK (JP) or PMI (Taiwan) linear guideway is used to guarantee quiet and stable movement.
The complete set includes standard accessories.
Telescopic arm makes the robot fit the limited installation space.

Features:

Five-axis robot, a robot with telescopic arm, gantry robot, IMM robot, pick and place robot, Three-axis and five-axis robot, telescopic arm, stack and insert function, hot selling, Five-axis drive-high precision, Double telescopic arm-space saved, Standard model-Competitive price.

Main Specifications
Model	Suitable for IMM	Stroke (mm)			Motor Type	Max Load (Including EoAT) (kg)	Time (seconds)		Net Weight (kg)
Model	Suitable for IMM	Vertical Stroke	Cross Stroke	Longitudinal Cross Stroke	Motor Type	Max Load (Including EoAT) (kg)	Output Time	Dry Cycle Time	Net Weight (kg)
RQ800WDS3/S5	150-200 tons	800	Main arm: 420 Sub arm: 150	1400	X, Y, Z - AC Servo Motor	5	1.6	7-8	220
RQ900WDS3/S5	200-320 tons	900	Main arm: 480 Sub arm: 150	1520		5	1.8	7.5-10	240
RQ1200WDS3/S5	320-550 tons	1200	Main arm: 480 Sub arm: 200	1700		5	2.0	8.5-11	260
