Water Curtain Painting Booth

Short description:

Innovative water curtain spray booth with Cartesian painting robot, this project effectively addressed key challenges in the barrel painting process, delivering innovative solutions that eliminated contamination, reduced material costs, and accelerated painting cycle time.

The problem

The existing barrel painting process faced critical challenges, including inside and outside color contamination, excessive costs associated with painting materials, and lengthy cycle times that hindered production efficiency.

§ Inside and outside colors contamination.

§ Painting material highly cost.

§ High Painting Cycle time.

Our Solution

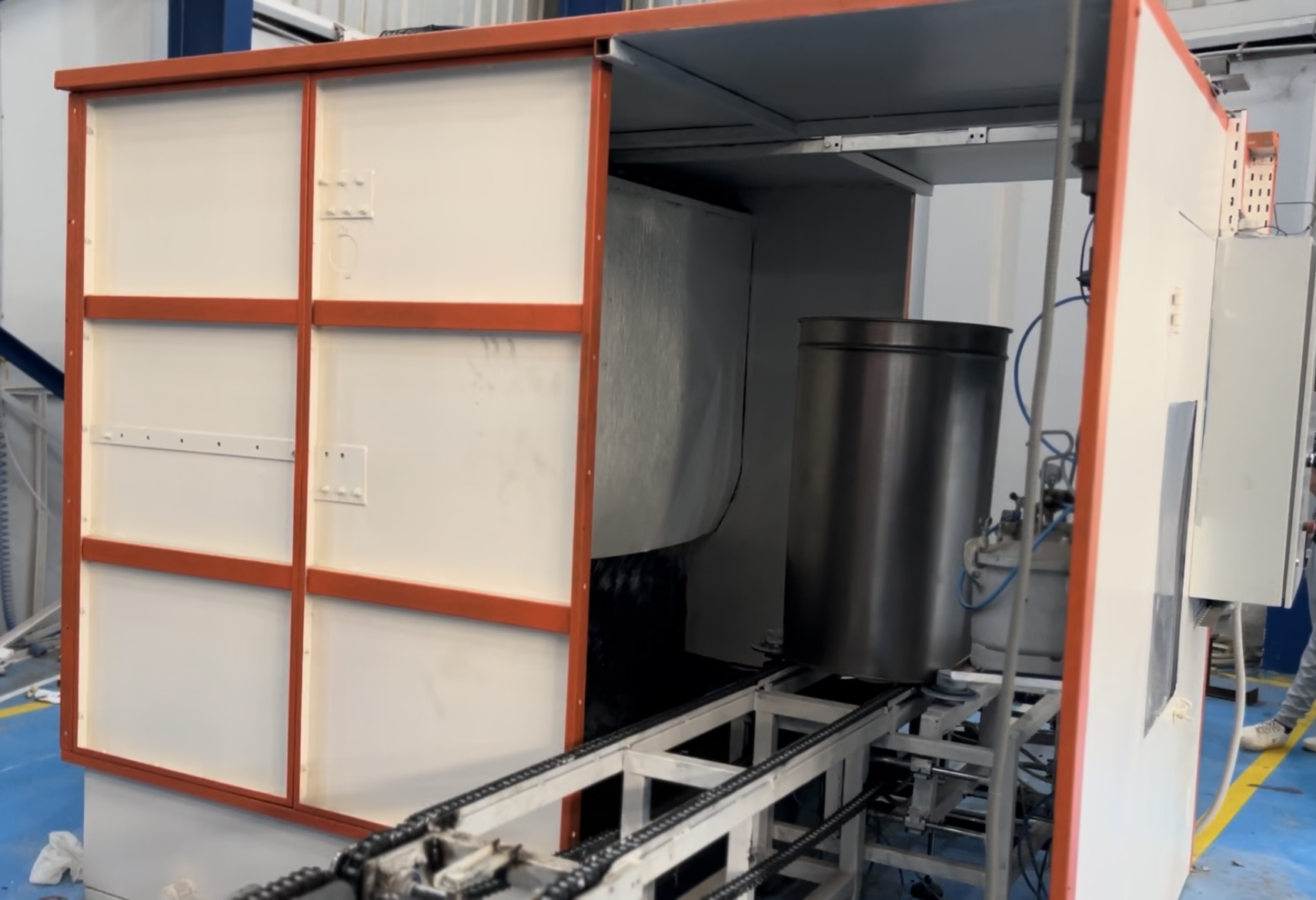

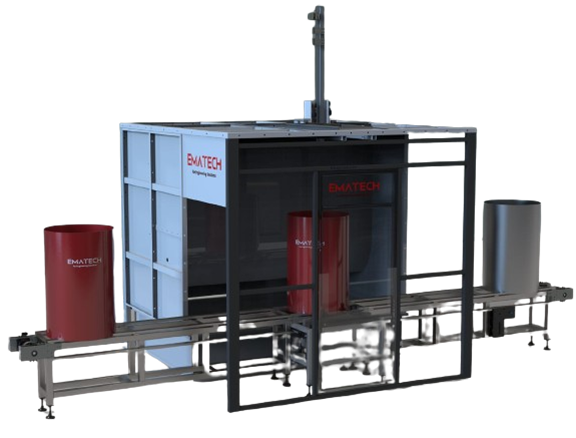

Water Curtain Spray Booth equipped with a blower unit for effective suction of residual spray, ensuring cleanliness and precision. The edge in this system, a Precise Cartesian Painting Robot with a rotation mechanism was integrated to optimize barrel spraying, delivering flawless coverage while eliminating contamination risks.

§ Water curtain spry booth with effective blower unit for residual spry suction.

§ Precises cartesian painting robot with rotation mechanism for barrel spraying.

Impact

This innovative solution has delivered transformative results:

• Overcoming Contamination: The integrated system eliminates color contamination inside and outside barrels, ensuring high-quality finishes.

22%

Cost Reduction

300%

Productivity Increase

• Customization Flexibility: The setup is fully adaptable to new barrel designs, enabling seamless integration with future manufacturing requirements.
